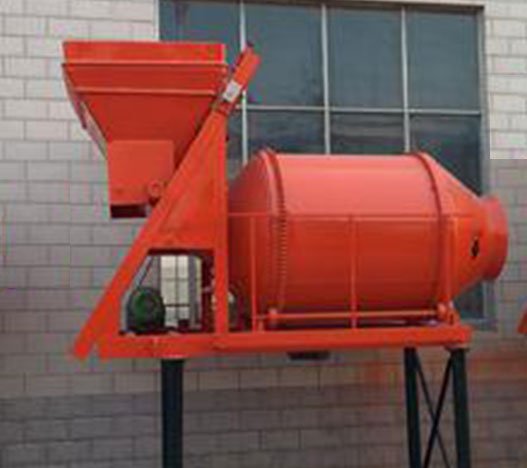

BB fertilizer mixer (mixing fertilizer production line) adopts positive and negative rotation operation, through special inner spiral structure and unique three-dimensional structure for material mixing and output, the equipment design is novel and practical.
BB fertilizer mixer (mixing fertilizer production line) adopts positive and negative rotation operation, through special inner spiral structure and unique three-dimensional structure for material mixing and output, the equipment design is novel and practical. The feeding system does not store materials, the mixing system is even, the electronic control system, manual, automatic, compound Settings, are the characteristics of its similar products do not have. The equipment has the characteristics of low price, small occupation area, large output and uniform mixing.
Complete SET of BB fertilizer equipment is mainly composed of the following equipment: storage bin; Weighing scale, mixer, large Angle belt elevator, quantitative packaging machine, automatic sewing machine, Finished product conveyor belt; Computer control system.
The process is as follows: storage system → feeding system → metering system → conveying and lifting system → mixing and mixing → automatic packaging and sewing → finished belt transportation → computer control system.
BB fertilizer equipment has a variety of specifications, the output capacity per hour is 7-9T, 10-14T, 15-18T, 20-24T, 25-30t and so on; According to the mixed materials are divided into 2-8 kinds of materials.
| Model | BBJH-01 |
| Capacity | 5-10tons/h |
| Mix rotate speed | 13r/min |
| Aggregate Max Diameter | ≤6mm |
| Motor of elevator | 1.5kw |
| Motor of Mixer | 5.5kw |
| Overall Size | 7980x2800x5290mm |
| Weight | 2300kgs |
