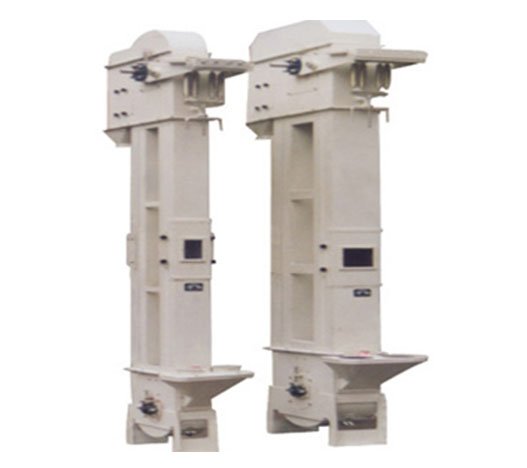

Bucket elevator by moving parts (hopper and traction tape), with the upper section of the drive roller, with the lower section of the idler pulley, intermediate casing, driving device, non-return brake and so on,
Bucket elevator by moving parts (hopper and traction tape), with the upper section of the drive roller, with the lower section of the idler pulley, intermediate casing, driving device, non-return brake and so on, is suitable for the upward transportation powder, granular, small block of no cut sex or half grinding cut, loose materials such as coal, sand, dust coke, cement, mineral water, etc.
| Item | Bucket elevator model | |||||||
| D160 | D250 | D350 | D450 | |||||
| S | Q | S | Q | S | Q | S | Q | |
| Conveyor capacity(m³/h) | 8.0 | 3.1 | 21.6 | 11.8 | 42 | 25 | 69.5 | 45 |
| Hopper volume(L) | 1.1 | 0.65 | 63.2 | 2.6 | 7.8 | 7.0 | 15 | 14.5 |
| Hopper Distance(mm) | 300 | 300 | 400 | 400 | 500 | 500 | 640 | 640 |
| Belt width | 200 | 300 | 400 | 500 | ||||
| Hopper working speed | 1.0 | 1.25 | 1.25 | 1.25 | ||||
| Rotation of driving drum(r/min) | 47.5 | 47.5 | 47.5 | 47.5 | ||||
