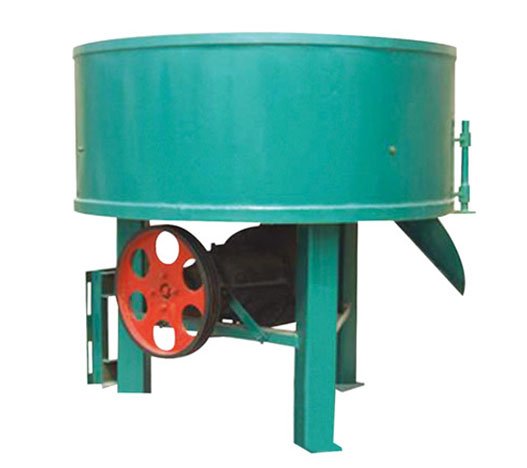

The forced mixer is composed of barrel, frame, motor, reducer, central shaft, rotating arm, mixing shovel, cleaning scraper, upper pressure plate and so on.
The forced mixer is composed of barrel, frame, motor, reducer, central shaft, rotating arm, mixing shovel, cleaning scraper, upper pressure plate and so on. Mixing shovel working face vertical and horizontal direction and the forward direction of the obtuse Angle, can strengthen the effect of mixing, improve the quality of mixing. Discharge port in the side wall of the barrel, and equipped with cleaning scraper, can more thoroughly speed up the discharge, reduce leakage. The shape of the walking wheel is convenient, and the wheel base is adjustable, so that the blender is more convenient to move . The shaft of mixer does not bear pressure in the process of mixing materials, and the maintenance is simple and convenient.
| Output Volume(L) | 350 |
| Input Volume(L) | 560 |
| Rated Power(Kw) | 5.5 |
| Max Pellet Diameter(mm) | 40 |
| Main Shaft Round Speed(r/min) | 35 |
| Overall Size(mm) | Φ1300x1200 |
