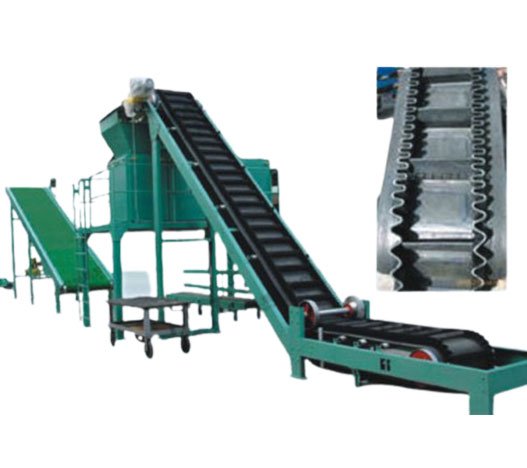

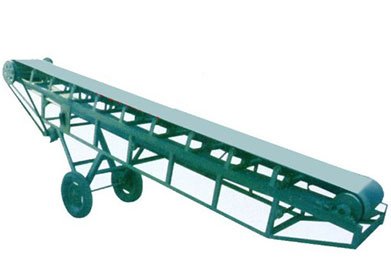

This series of products are mainly used for large dip Angle continuous conveying of bulk materials, using conveyor belt with wavy retaining edge and diaphragm, conveying dip Angle of 0-90°(best below 70°) This series of products are widely used in port, wharf, metallurgy, chemical industry, electric power, coal, building materials and other block or bulk material transportation.
This series of products are mainly used for large dip Angle continuous conveying of bulk materials, using conveyor belt with wavy retaining edge and diaphragm, conveying dip Angle of 0-90°(best below 70°) This series of products are widely used in port, wharf, metallurgy, chemical industry, electric power, coal, building materials and other block or bulk material transportation.
Large dip Angle belt conveyor is a new type of belt conveyor, with easy Angle change, small footprint, energy saving, low noise, large throughput, smooth belt operation. Long service life, optional models, low overall cost advantages
| Belt width (B) | 300 | 400 | 500 | 650 | 800 | 1000 | |||||||||
| Guard Height (H) | 40 | 60 | 80 | 80 | 120 | 80 | 120 | 160 | 120 | 160 | 200 | 160 | 200 | 240 | |
| Cephalic diameter series | Φ200-Φ316 | Φ315-Φ400 | Φ315-Φ500 | Φ315-Φ500 | Φ400- Φ630 | Φ400-Φ630 | |||||||||
| Output volume | 30°H | 16 | 23 | 36 | 50 | 70 | 74 | 105 | 122 | 135 | 164 | 204 | 240 | 300 | 350 |
| 40°H | 12 | 19 | 25 | 33 | 60 | 49 | 90 | 106 | 115 | 142 | 175 | 195 | 240 | 310 | |
| M3/H | 50°H | 9 | 15 | 19 | 23 | 41 | 35 | 61 | 75 | 78 | 100 | 120 | 137 | 165 | 210 |
| Overall size | Head wheel center height H | 350-1000 | 1100-2000 | 1300-2000 | 1600-2000 | ||||||||||
| Tail wheel center height H2 | 350 | 350-500 | 600 | 800 | |||||||||||
| Middle segment with face height H3 | 450 | 500-700 | 760-800 | 760-850 | 1000-1135 | 1050-1135 | |||||||||
| Middle segment foot width B1 | 480 | 580 | 870 | 1020 | 1220 | 1440 | |||||||||
