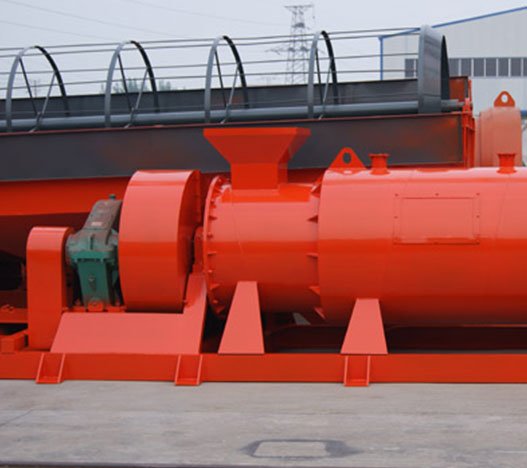

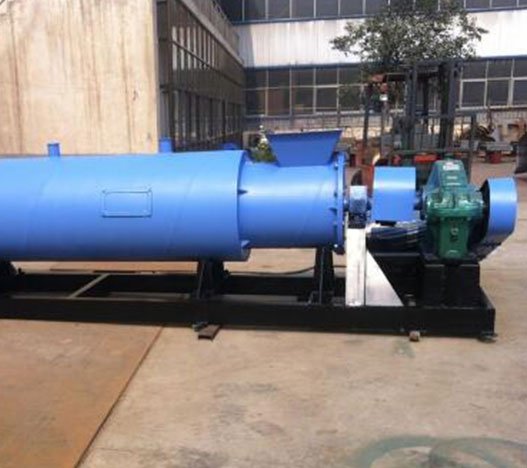

New type animal manure granulator machine, also called as stirring tooth pellet machine, adopts wet granulation.
New type animal manure granulator machine, also called as stirring tooth pellet machine, adopts wet granulation. Via aerodynamic force generated from rotation of stirring tooth and water, it can make pellets with uniform size and beautiful appearance. Its granulation rate can achieve 97%. In addition, the main body adopts heavy seamless steel pipe, which is durable and sturdy. When the fermented animal manure enters the granulator from the feeding inlet. Then the compost will be mixed, granulated, polished in the main body. In terms of stirring tooth on the rotary shaft, you can maintain and replace it through inspection windows on the main body.
| Code | Capacity, t/h | Power(KW) | Size(L*W*H),mm | Reduction Box |
| ZLJ-40 | 0.5-1 | 18.5 | 2900*1200*1300 | ZD20 |
| ZLJ-60 | 2-3 | 37 | 4500*1700*1300 | ZD25 |
| ZLJ-80 | 3-5 | 55 | 4900*1700*1400 | ZD30 |
| ZLJ-100 | 6-8 | 75 | 5300*1900*1500 | ZD35 |
| ZLJ-120 | 8-12 | 90 | 5700*2100*1700 | ZD40 |
| ZLJ-150 | 10-15 | 110 | 6300*2200*2000 | ZD50 |
