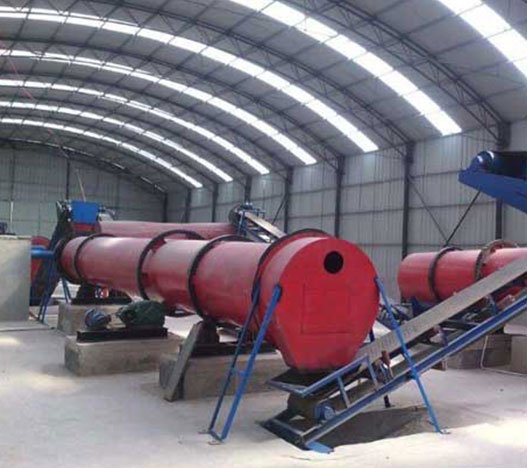

Rotary Drum Drier

The dryer can dry livestock manure with a moisture content of 30%-50% directly to safe storage moisture at one time.

Introduction

The dryer can dry livestock manure with a moisture content of 30%-50% directly to safe storage moisture at one time. The whole process is dried in a closed system to reduce environmental pollution during drying. The material with large moisture content is evenly dispersed in the dryer and fully contacted with the hot air under the rotation of the plate reader, which speeds up the heat transfer and mass transfer of drying. The rotary drum drying mechanization degree is high, the production capacity is large, can operate continuously; Excellent structure, simple, material through the cylinder resistance smooth operation, easy to operate. Less failure, low maintenance cost, low power consumption, wide application range, good uniformity of drying products.

TECHNICAL PARAMETER

Model Diameter (mm) Length (mm) Angle (° ) Speed (r/min) Capacity (H/h) Feed Temperature ('C ) Outlet Temperature (’C) Motor Power (kw)
ZG0.8x8 800 8000 2-5 5 1—1.5 150-250 30-60 5.5
ZG1.0x10 1000 10000 2-5 5 1.5-2.5 150-250 30-60 7.5
ZG1.2x12 1200 12000 2-5 4.7 2-3 150-250 30-60 11
ZG1.5x15 1500 15000 2-5 5 5-7 150-250 30-60 15
ZG1.8x18 1800 18000 2-5 3.9 7-10 150-250 30-60 22
ZG2.0x20 2000 20000 2-5 3.2 8-14 150-250 30-60 30
