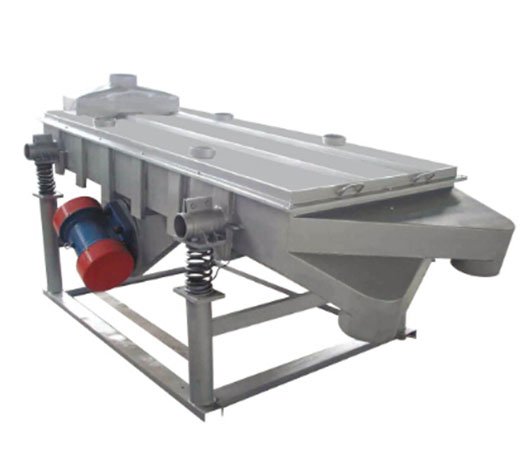

Vibrating screen using vibration motor excitation for vibration source, so that the material is thrown up on the screen, at the same time forward linear movement, material from the feeder evenly into the feed port of the screen machine
Vibrating screen using vibration motor excitation for vibration source, so that the material is thrown up on the screen, at the same time forward linear movement, material from the feeder evenly into the feed port of the screen machine, through the multi-layer screen to produce a number of specifications of the screen, screen, respectively from their own exports. Linear vibrating screen (linear screen) has the advantages of stable and reliable, less consumption 'low noise, long life, vibration stability, high screening efficiency, is a kind of efficient new screening equipment, widely used in fertilizer production, mining, coal mine, building materials, refractory materials, light industry, chemical industry and other industries.
| Model | Screening area(m³) | Capacity t/h | Power kw | Speed r/min | amplitude (mm) | Overall Size L*W*H m | Weight (kg) |
| ZS1 X3 | 3 | 3-5 | 1.5 | 960 | 4-6 | 3一4X1 .5X2.7 | 1850 |
| ZS1.2X4 | 4.8 | 5-8 | 2.2 | 960 | 4-6 | 4.1 X1 .6X3.8 | 3500 |
| ZS1.4X5 | 7 | 8-15 | 1.5X2 | 960 | 4-6 | 5.4X1 .7X4.1 | 4500 |
